Please note: this is just a guide for CSA Standard Z96, please check with your internal safety contact which reflective tape is approved for the industry and type of work you're performing.
In Ontario, Canada, the type of high-visibility reflective tape you use depends on the industry you work in. The goal is to make sure you or your equipment can be seen easily, especially in low light or at night, to avoid accidents. Here's a simple breakdown of what to use for different industries:
The CSA Z96 standard in Canada outlines different classes of high-visibility reflective tape used for personal protective equipment (PPE) to ensure workers are visible in various environments. These classes are based on the level of visibility and protection needed for workers in specific situations.
Here’s a breakdown of the CSA reflective tape classes, what each class means, and which industries require each class:
1. CSA Z96 Reflective Tape Classes
The reflective tape used on PPE, like safety vests, jackets, and other gear, is divided into three visibility classes: Class 1, Class 2, and Class 3.
Class 1: Low-Visibility Environment
Example:
-
What it Means:
- Class 1 is for workers who are in low-risk environments where the likelihood of being hit by vehicles or moving machinery is minimal. These are typically areas where workers are working away from moving traffic or equipment.
- Reflective tape for Class 1 is typically used in environments with limited vehicle movement or low traffic.
-
Key Features:
- Minimum Reflective Tape: Must have some reflective tape but in smaller quantities compared to higher classes.
- Visibility Requirements: These workers must be visible in low-light conditions but aren’t necessarily in high-risk traffic zones.
-
Industries and Use Cases:
- Offices and Administrative Areas: Workers who might be in warehouses but are far from heavy machinery or vehicles.
- Non-High-Risk Areas in Manufacturing: Workers who aren't typically near moving machinery or vehicles.
- Other Low-Risk Settings: Certain maintenance workers in low-traffic zones, such as those not directly interacting with machines or vehicles.

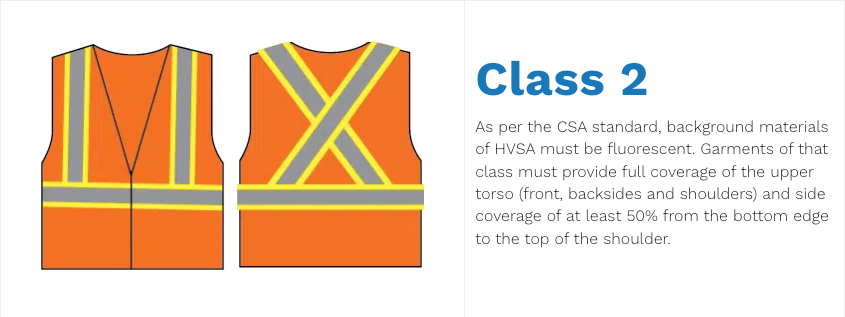

Class 2: Moderate Visibility Environment
Example:
-
What it Means:
- Class 2 is for workers in areas where there is moderate traffic or potential hazards, and the workers are at a moderate risk of being hit by vehicles or equipment. This includes environments where workers may be close to traffic or machinery but not directly involved with it.
-
Key Features:
- Reflective Tape on Key Areas: More reflective material is required than Class 1, with more coverage on the vest or gear to ensure moderate visibility.
- Visibility: Workers need to be clearly visible from further distances or in low-light conditions but are not working directly in high-risk environments.
-
Industries and Use Cases:
- Road Maintenance and Traffic Control: Flaggers or workers in roadwork zones who need to be seen by drivers but aren't necessarily working in the direct path of traffic.
- Warehouse and Distribution: Workers in loading docks or warehouse aisles with forklifts, where workers need to be visible to machinery operators but aren't in immediate danger of being run over.
- Construction Zones with Low Traffic: Workers in areas where construction vehicles or equipment are moving but at lower speeds or limited traffic.
Class 3: High-Risk Visibility Environment
Example:
-
What it Means:
- Class 3 is for workers who are in high-risk environments where there is high traffic or close interaction with moving vehicles or machinery. These workers need to be extremely visible because they are exposed to the most dangerous situations.
- Reflective tape for Class 3 provides the highest level of visibility to ensure safety in areas where the risk of being struck by vehicles or machinery is significant.
-
Key Features:
- Full Reflective Coverage: Workers need extensive reflective material on their gear to make them visible from all directions. The reflective tape covers more of the garment, ensuring full visibility.
- High-Visibility Standards: More coverage and higher reflectivity are required. Class 3 is the highest level of protection for workers in high-risk zones.
-
Industries and Use Cases:
- Construction and Roadwork: Workers near active roadways, heavy machinery, or construction zones, where visibility is crucial to prevent accidents. Flaggers, construction workers near moving vehicles, and those working at night or in low light would use Class 3.
- High-Risk Industrial Settings: Workers operating around large machinery, forklifts, or cranes who need to be seen from far away and in all directions.
- Emergency Services and First Responders: Police, firefighters, and paramedics working in active roadways or hazardous environments where maximum visibility is required.
- Traffic Control: Workers directly involved in managing traffic or interacting with vehicles in road construction or maintenance zones.
Summary: Class Breakdown
| Class | Visibility Level | Required Tape Coverage | Industries & Use Cases |
|---|---|---|---|
| Class 1 | Low-risk (Low visibility needed) | Basic reflective tape coverage | Office settings, workers in warehouses or offices, light manufacturing areas. |
| Class 2 | Moderate-risk (Moderate visibility) | Moderate reflective coverage | Road maintenance, traffic control, warehouse docks, general construction areas. |
| Class 3 | High-risk (Maximum visibility) | Extensive reflective coverage | Road construction zones, flaggers, heavy machinery areas, emergency responders. |
Which Class Applies to Which Industry?
-
Construction & Roadwork:
- Class 3 is most commonly used because workers are often in high-risk zones near moving vehicles and machinery.
- Flaggers, construction workers, and those working in traffic control use Class 3.
-
Transportation & Warehousing:
- Class 2 might be common for workers in warehouses or loading docks, where visibility is important but the risk of being struck by vehicles is lower than in construction zones.
- Class 3 could be used in high-risk areas where forklifts or other vehicles are moving frequently.
-
Manufacturing & Industrial:
- Class 2 is commonly used for workers near heavy equipment or in areas with moderate traffic but where workers aren't directly in danger of being hit.
- Class 3 might be needed in high-risk environments with large machinery, like heavy-duty manufacturing or construction machinery.
-
Emergency Services:
- Class 3 is critical for visibility in emergency situations where responders need to be seen by drivers in dark or dangerous conditions.
Final Thoughts:
The CSA Z96 standard provides clear guidelines on reflective tape for PPE, ensuring workers are visible in various risk environments. In general:
- Class 1 is for low-risk situations,
- Class 2 is for moderate risk,
- Class 3 is for high-risk and high-visibility needs, especially in industries like construction, emergency services, and heavy machinery environments.
Each industry will select the appropriate class of reflective tape based on the risk level of the environment and the tasks workers are performing.
Still not sure, please ask your companies safety contact for further guidance.
